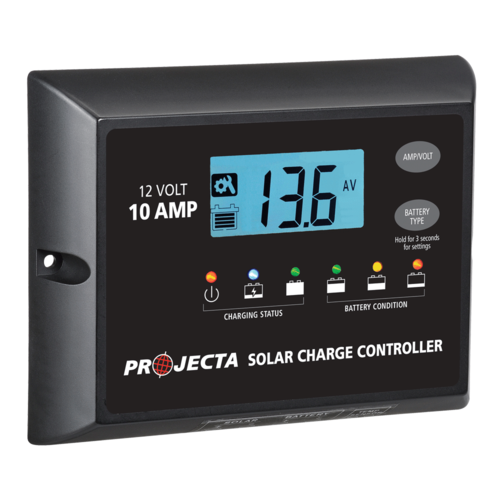

Automatic 12V 10A 4 Stage Solar Charge Controller
PART NO. SC110
Packed with features, this sophisticated solar controller is ideal for panels capable of producing up to 10 Amps. Delivering a comprehensive 4 stage charging process and the ability to tailor its settings to best suit your battery type.
FEATURES

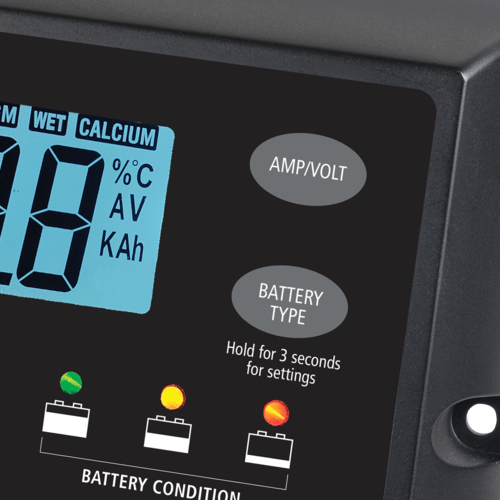

Digital L.E.D screen
Displays battery voltage, charging current, charging capacity, fault codes and more

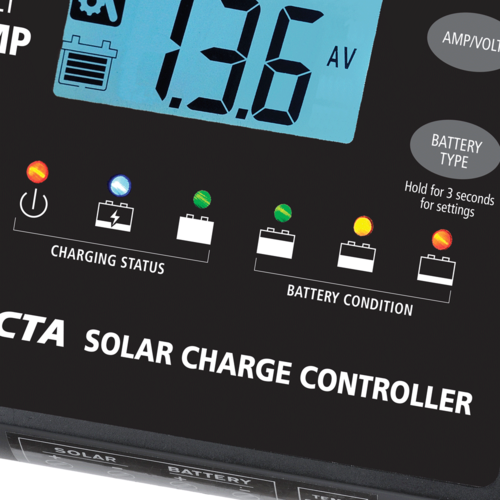

L.E.D charge indicator
Displays quick reference to charge status and battery condition
Multi-chemistry
Set the charging profile to suit battery chemistry type: Wet, Calcium, AGM or Gel
Sealed electronics

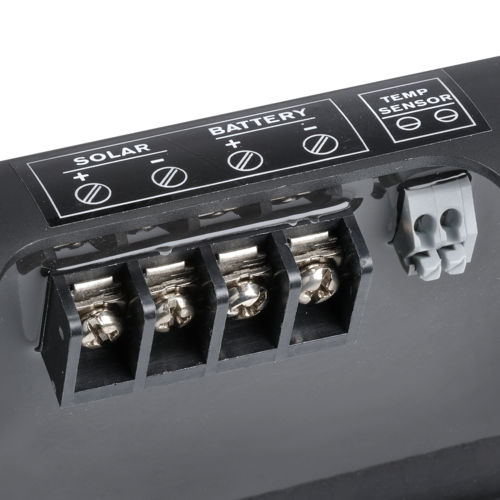

Conformal coated circuit board and plated terminals protect controller from the elements
Temperature sensor
Built-in sensor enables unit to optimise charge performance and offer additional protection. Optional sensor probe also available
| SPECIFICATIONS |
|
PART NO
|
SC110
|
|
INPUT
|
12V
|
|
MAX INPUT
|
25VDC, 10A
|
|
MAX CHARGE
|
10A
|
|
MAX PANEL SIZE
|
120W
|
|
BATTERY
|
12V
|
|
CHARGE CONTROL
|
4 Stage Charging
Bulk:
Absorption:
Equalisation:
Float: |
Gel:
AGM:
Wet:
Calcium: |
12V
14.0V
14.1V
14.4V
14.7V
14.9V
15.5V
13.6V |
|
|
APPROVAL
|
EMC
|
|
IP RATING
|
IP22
|
