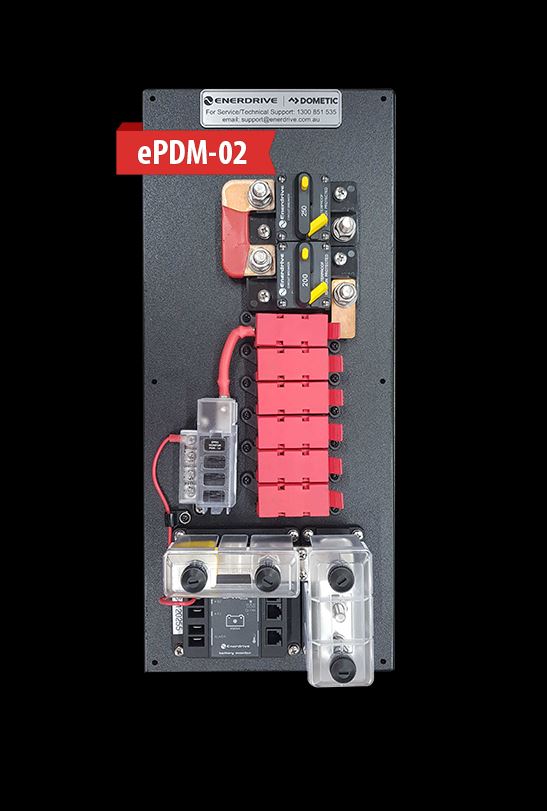

Enerdrive ePDM-02 Power Distribution Module – with ePRO+ Battery Monitor

Enerdrive | Dometic ePDM-02 Power Distribution Module

The Enerdrive | Dometic Power Distribution Module (ePDM) is a DIY-friendly solution for managing all of your electrical loads from a single, central location. The ePDM-02 is purpose-built for smaller systems running an inverter, combining a main distribution breaker, dedicated inverter protection, load fusing and a battery monitor into one pre-configured panel — so you can skip the guesswork on wiring layout and get straight to installing.

Part of Enerdrive | Dometic's eSYSTEM pre-wired board power range, designed for 4WD canopies, caravans, camper trailers, commercial work vehicles and more. Whether you're a DIY installer with basic electrical knowledge or a professional looking to save time on the bench, the eSYSTEM range has a layout to suit.

Key Features

• Distribution panel ideal for smaller systems with an inverter
• Main distribution resettable circuit breaker — 120A
• Inverter circuit breaker — 200A standard (250A optional for 2600W inverters)
• 4 x Midi fuses for loads/chargers, wired from the main bus bar to the distribution circuit breaker
• 500A main negative busbar
• ePRO+ battery monitor included for system monitoring and State of Charge tracking
• 4-position 100A fuse block for 24-hour loads

Why Choose the ePDM Range?

Every ePDM ships with a bus bar for all negative connections and is available in three configurations — with ePRO+ Battery Monitor, with Simarine Battery Monitor, or without a monitor — so you can match the panel to the monitoring system already in your build.
