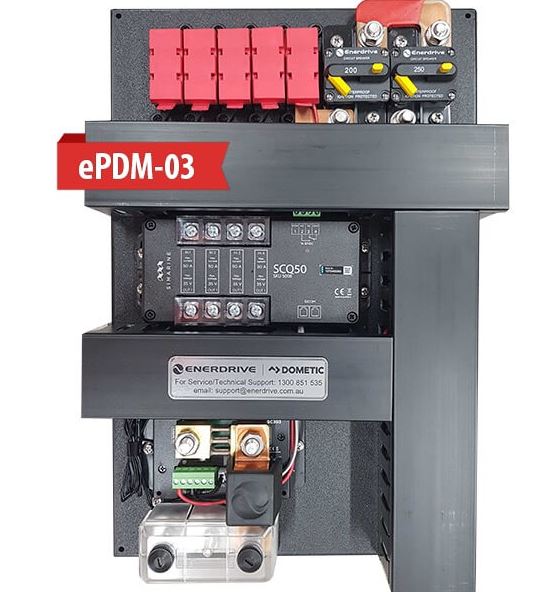

Enerdrive ePDM-03 Power Distribution Module – Simarine Monitoring, 120A Distribution

One Panel. Total Control. Enerdrive's DIY Power Distribution Module.

Description

The Enerdrive | Dometic Power Distribution Module (ePDM) is a DIY-friendly solution for managing all your electrical loads from a single, central location. The ePDM-03 is purpose-built for smaller systems running an inverter, combining a main distribution circuit breaker, dedicated inverter protection, and multiple fused load outputs with full Simarine battery monitoring — all in one compact panel.

Part of Enerdrive | Dometic's eSYSTEM range of pre-wired power boards for 4WD canopies, caravans, camper trailers, and commercial work vehicles, the ePDM-03 is designed to suit the DIY handyman with basic electrical knowledge through to the professional installer looking to save time on the tools.

Key features:

• Distribution panel ideal for smaller systems with an inverter
• Main distribution resettable circuit breaker – 120A
• Inverter circuit breaker – 200A standard (optional 250A for 2600W inverters)
• 4 x Midi fuses for loads/chargers, wired to the main bus bar and distribution circuit breaker
• 500A main negative busbar for all negative connections
• Simarine SC303 main shunt for system monitoring and state of charge tracking
• Simarine SCQ50 quad shunt for individual load and charge monitoring
• Simarine PICO monitor with panel-mount black display

Specifications

Note: This is the Simarine-monitored version of the ePDM range. An ePRO+ battery monitor version and a version without a monitor are also available if you'd prefer a different display or monitoring setup.

-- Built to order, 3-4 week delivery time --
