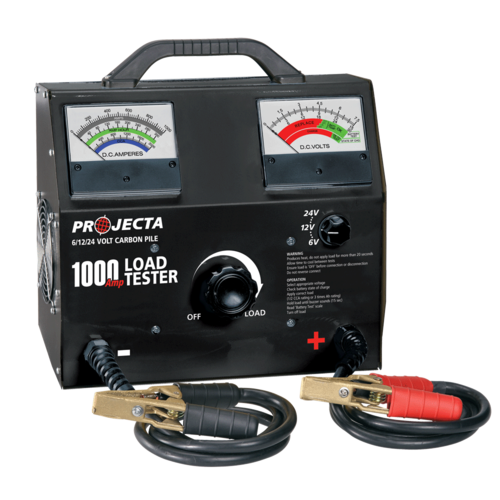

An incredibly durable, quality constructed load tester. Capable of performing variable tests on 6, 12 or 24V batteries rated as high as 2000CCA.
FEATURES
Dual meters
Large and easy to read screens detail test results simultaneously
Heavy-duty clamps
Solid die cast brass battery clamps for excellent conductivity
Battery test
Adjustable 0–1000A load provides correct tests for 6/12/24V batteries up to 2000CCA or 320Ah
Voltage selection
Suitable for use with 6, 12 and 24 Volt batteries via simple turn dial
| SPECIFICATIONS |
|
PART NO
|
BLT300
|
|
TESTS
|
Volts (0–30VDC)
6/12/24V lead acid batteries
|
|
BATTERY RANGE
|
Up to 2000CCA (320Ah)
|
|
TEST LOAD
|
Adjustable carbon pile 0–1000 Amps
|
|
MAX LOAD ON TIME
|
20 seconds
|
|
RECOMMENDED COOL DOWN TIME
|
2 minutes
|
|
TEST TIME ALERT
|
Buzzer sounds after 15 seconds
|
|
CABLE LENGTH
|
1400mm
|
|
SIZE
|
350mm x 355mm x 175mm
|
|
WEIGHT
|
8.4kg
|
